Cuantificacion de incerteza con redes neuronales en PyTorch y Bayesian-Torch

Cuantificacion de incerteza con redes neuronales en PyTorch y Bayesian-Torch#

En esta notebook vamos a estudiar distintas estrategias para cuantificar incerteza predictiva en un problema de regresion tabular.

El objetivo sera predecir la temperatura aparente (apparent_temperature) a partir de variables meteorologicas como:

temperatura medida;
humedad;
velocidad del viento;
direccion del viento;
visibilidad;
presion.

Dentro de esta notebook veremos:

una red deterministica como baseline;

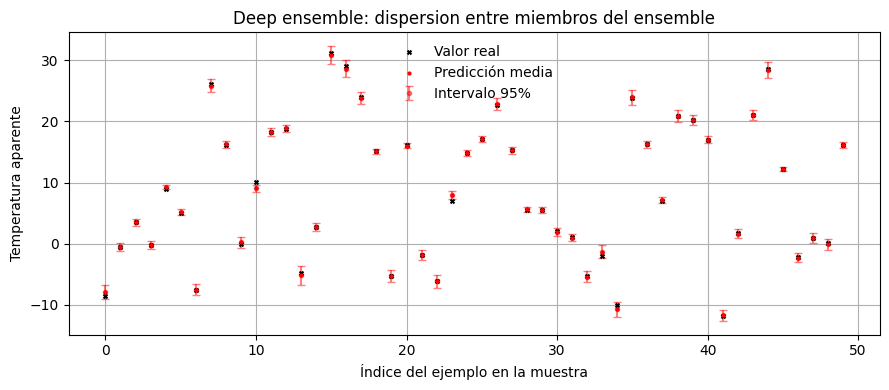

deep ensembles;

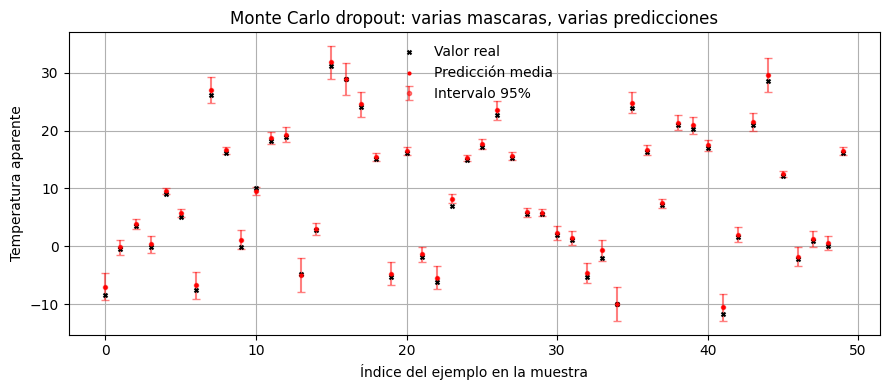

Monte Carlo dropout;

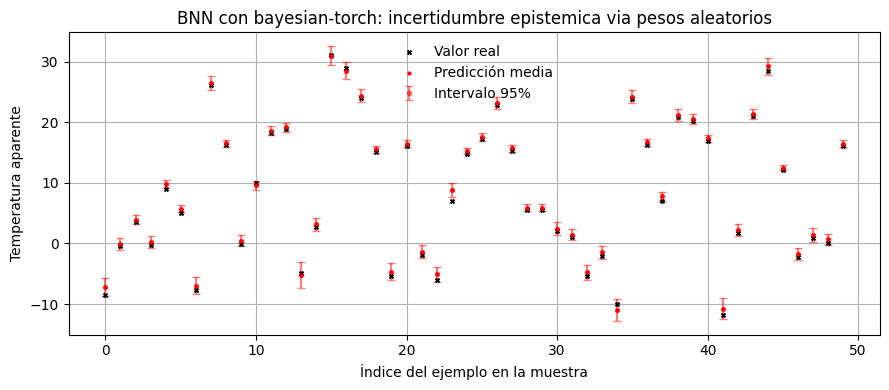

una Bayesian Neural Network con bayesian-torch;

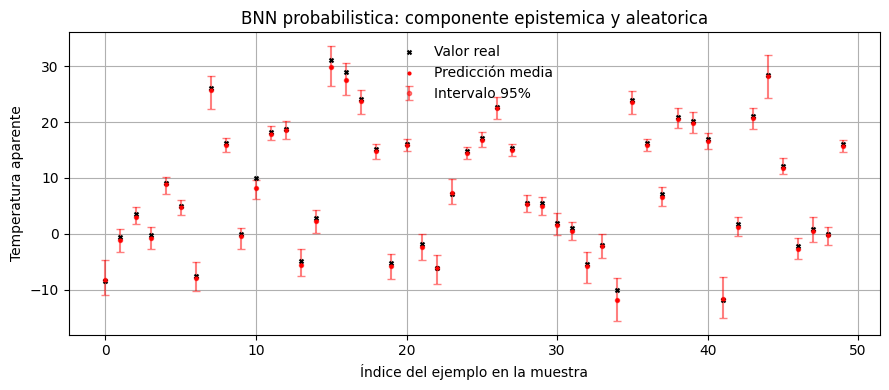

una BNN probabilistica, que ademas modele incertidumbre aleatorica en la salida.

Objetivos de aprendizaje:

ver que informacion aporta un modelo puntual y que informacion falta;
comparar tres aproximaciones practicas a la incertidumbre epistemica;
entender el rol del termino KL en una BNN;
separar, al menos de manera aproximada, la parte epistemica y la aleatorica en una red probabilistica.

Librerias necesarias#

Esta notebook usa torch, pandas, matplotlib y bayesian-torch.

Si hace falta, se pueden instalar asi:

# !pip install torch torchvision torchaudio
# !pip install pandas matplotlib bayesian-torch

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt

import torch
import torch.nn as nn
import torch.nn.functional as F
from torch.distributions import Normal
from torch.optim import Adam
from torch.utils.data import DataLoader, TensorDataset

from bayesian_torch.layers import LinearReparameterization

SEED = 42


def set_seed(seed=SEED):
    np.random.seed(seed)
    torch.manual_seed(seed)
    if torch.cuda.is_available():
        torch.cuda.manual_seed_all(seed)


set_seed(SEED)
DEVICE = torch.device("cuda" if torch.cuda.is_available() else "cpu")
print("Dispositivo:", DEVICE)
print("Torch:", torch.__version__)

plt.rcParams["figure.figsize"] = (6, 4)
plt.rcParams["axes.grid"] = True

Dispositivo: cpu
Torch: 2.5.1

Parte 1#

El problema y el dataset#

La temperatura aparente combina la temperatura ambiente con otros factores que afectan la sensacion termica, especialmente el viento y la humedad.

Desde el punto de vista de modelado, esto es un problema de regresion con varias entradas numericas y una salida continua. Es un buen escenario para comparar metodos de cuantificacion de incerteza porque:

la regresion es sencilla de entrenar;
hay suficientes datos para que el baseline funcione razonablemente bien;
aun asi, distintos metodos pueden dar niveles de confianza distintos.

def compute_standardization_stats(tensor):
    mean = tensor.mean(dim=0, keepdim=True)
    std = tensor.std(dim=0, unbiased=False, keepdim=True)
    std = torch.where(std < 1e-6, torch.ones_like(std), std)
    return mean, std


def standardize(tensor, mean, std):
    return (tensor - mean) / std


def destandardize(tensor, mean, std):
    return tensor * std + mean


def inverse_transform_targets(values, y_mean, y_std):
    values = np.asarray(values, dtype=np.float32).reshape(-1, 1)
    restored = values * y_std.cpu().numpy() + y_mean.cpu().numpy()
    return restored.reshape(-1)


def get_weather_dataloaders(
    train_size: float,
    batch_size: int,
    seed: int = 0,
    num_workers: int = 0,
    pin_memory: bool = True,
    dataset_size: float = 1.0,
):
    if not (0.0 < train_size <= 1.0):
        raise ValueError(f"train_size must be in (0, 1], got {train_size}")

    url = "https://raw.githubusercontent.com/pandego/mdn-playground/refs/heads/main/data/01_raw/weather_dataset/weather_dataset_example.csv"
    df = pd.read_csv(url, delimiter=";")

    if dataset_size < 1.0:
        n_samples = int(len(df) * dataset_size)
        df = df.sample(n=n_samples, random_state=seed).reset_index(drop=True)

    target_col = "apparent_temperature"
    feature_cols = [c for c in df.columns if c != target_col]

    X = torch.tensor(df[feature_cols].to_numpy(dtype=np.float32))
    y = torch.tensor(df[[target_col]].to_numpy(dtype=np.float32))

    num_samples = X.shape[0]
    rng = np.random.default_rng(seed)
    perm = torch.tensor(rng.permutation(num_samples), dtype=torch.long)

    n_train = int(train_size * num_samples)
    if n_train == 0 or n_train == num_samples:
        raise ValueError("El split train/test quedo degenerado.")

    train_idx = perm[:n_train]
    test_idx = perm[n_train:]

    X_train_raw = X[train_idx]
    y_train_raw = y[train_idx]
    X_test_raw = X[test_idx]
    y_test_raw = y[test_idx]

    x_mean, x_std = compute_standardization_stats(X_train_raw)
    y_mean, y_std = compute_standardization_stats(y_train_raw)

    X_train = standardize(X_train_raw, x_mean, x_std)
    X_test = standardize(X_test_raw, x_mean, x_std)
    y_train = standardize(y_train_raw, y_mean, y_std)
    y_test = standardize(y_test_raw, y_mean, y_std)

    train_ds = TensorDataset(X_train, y_train)
    test_ds = TensorDataset(X_test, y_test)

    train_loader = DataLoader(
        train_ds,
        batch_size=batch_size,
        shuffle=True,
        num_workers=num_workers,
        pin_memory=pin_memory,
    )
    test_loader = DataLoader(
        test_ds,
        batch_size=batch_size,
        shuffle=False,
        num_workers=num_workers,
        pin_memory=pin_memory,
    )

    return {
        "df": df,
        "feature_cols": feature_cols,
        "target_col": target_col,
        "train_loader": train_loader,
        "test_loader": test_loader,
        "X_train_raw": X_train_raw,
        "y_train_raw": y_train_raw,
        "X_test_raw": X_test_raw,
        "y_test_raw": y_test_raw,
        "X_train": X_train,
        "y_train": y_train,
        "X_test": X_test,
        "y_test": y_test,
        "x_mean": x_mean,
        "x_std": x_std,
        "y_mean": y_mean,
        "y_std": y_std,
    }


TRAIN_SIZE = 0.70
BATCH_SIZE = 512

weather = get_weather_dataloaders(
    train_size=TRAIN_SIZE,
    batch_size=BATCH_SIZE,
    seed=SEED,
)

df = weather["df"]
FEATURE_NAMES = weather["feature_cols"]
TARGET_COL = weather["target_col"]
NUM_FEATURES = len(FEATURE_NAMES)
train_dataloader = weather["train_loader"]
test_dataloader = weather["test_loader"]

print("Cantidad total de muestras:", len(df))
print("Tamaño train:", len(train_dataloader.dataset))
print("Tamaño test:", len(test_dataloader.dataset))
df.head()

Cantidad total de muestras: 96453
Tamaño train: 67517
Tamaño test: 28936

	temperature	apparent_temperature	humidity	wind_speed	wind_bearing	visibility	pressure
0	9.472222	7.388889	0.89	14.1197	251.0	15.8263	1015.13
1	9.355556	7.227778	0.86	14.2646	259.0	15.8263	1015.63
2	9.377778	9.377778	0.89	3.9284	204.0	14.9569	1015.94
3	8.288889	5.944444	0.83	14.1036	269.0	15.8263	1016.41
4	8.755556	6.977778	0.83	11.0446	259.0	15.8263	1016.51

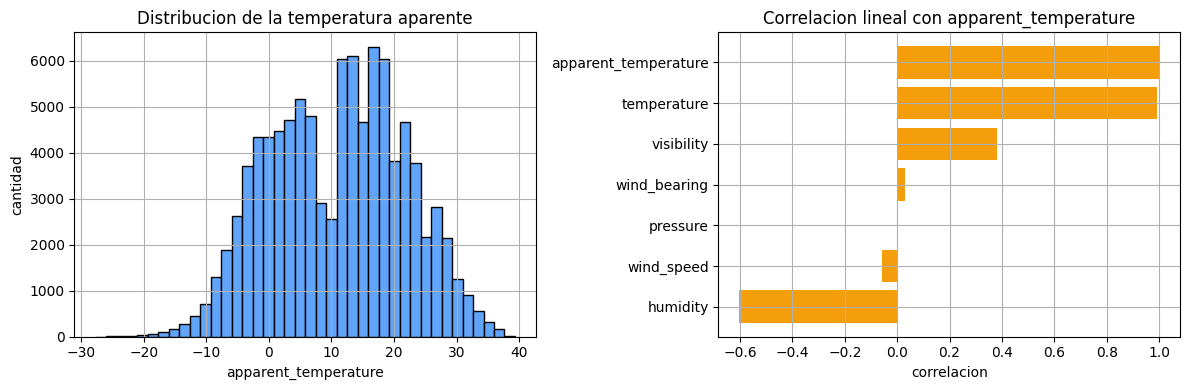

fig, axes = plt.subplots(1, 2, figsize=(12, 4))

axes[0].hist(df[TARGET_COL], bins=40, color="#60a5fa", edgecolor="black")
axes[0].set_title("Distribucion de la temperatura aparente")
axes[0].set_xlabel("apparent_temperature")
axes[0].set_ylabel("cantidad")

corr = df.corr(numeric_only=True)[TARGET_COL].sort_values()
axes[1].barh(corr.index, corr.values, color="#f59e0b")
axes[1].set_title("Correlacion lineal con apparent_temperature")
axes[1].set_xlabel("correlacion")

plt.tight_layout()
plt.show()

../_images/bd47a66a44184c4e46333780d3b7cd563740665734785893de31e683497c9085.png

Tomaremos una muestra fija del conjunto de test para comparar todos los metodos sobre exactamente los mismos casos.

sample_size = 50

example_inputs = weather["X_test"][:sample_size]
example_targets_std = weather["y_test"][:sample_size].squeeze(-1).cpu().numpy()
example_targets = inverse_transform_targets(
    example_targets_std,
    weather["y_mean"],
    weather["y_std"],
)
example_inputs_raw = weather["X_test_raw"][:sample_size].cpu().numpy()

pd.DataFrame(example_inputs_raw, columns=FEATURE_NAMES).assign(
    apparent_temperature=example_targets
).round(3)

	temperature	humidity	wind_speed	wind_bearing	visibility	pressure	apparent_temperature
0	-5.528000	0.85	6.360000	166.0	6.617	1043.619995	-8.522000
1	2.800000	0.75	12.526000	129.0	11.270	1018.169983	-0.500000
2	6.078000	0.87	12.284000	17.0	11.190	1021.989990	3.528000
3	3.333000	0.73	14.490000	300.0	16.100	1018.900024	-0.206000
4	10.000000	0.34	8.050000	220.0	9.982	1010.299988	9.011000
5	5.044000	0.93	1.626000	148.0	7.728	1031.479980	5.044000
6	-2.811000	0.99	13.926000	288.0	6.456	1018.250000	-7.633000
7	26.156000	0.41	14.152000	10.0	16.100	1022.429993	26.156000
8	16.183001	0.52	8.018000	13.0	15.826	1017.320007	16.183001
9	-0.050000	1.00	1.288000	76.0	0.161	1011.280029	-0.050000
10	10.050000	0.93	13.959000	149.0	15.649	1013.539978	10.050000
11	18.283001	0.59	9.290000	285.0	15.553	1017.020020	18.283001
12	18.839001	0.52	15.746000	180.0	11.270	1004.659973	18.839001
13	2.178000	0.92	45.626999	310.0	11.125	1008.020020	-4.867000
14	6.711000	0.58	24.665001	29.0	15.826	1013.619995	2.761000
15	30.677999	0.45	8.275000	134.0	10.352	1017.239990	31.160999
16	28.194000	0.53	4.846000	206.0	10.368	1010.200012	29.011000
17	24.066999	0.41	11.109000	112.0	9.982	1014.739990	24.066999
18	15.122000	0.86	12.848000	342.0	10.352	1019.299988	15.122000
19	-0.094000	0.89	19.900000	328.0	11.978	1005.650024	-5.322000
20	16.089001	0.87	12.655000	300.0	9.982	1020.070007	16.089001
21	2.106000	0.92	15.343000	150.0	9.757	1010.250000	-1.861000
22	-2.394000	0.89	9.837000	80.0	9.644	1024.550049	-6.111000
23	9.978000	0.83	23.683001	290.0	9.982	1017.330017	7.033000
24	14.839000	0.68	18.966000	301.0	11.447	1014.940002	14.839000
25	17.172001	0.72	9.096000	301.0	11.270	1011.179993	17.172001
26	22.778000	0.71	9.660000	60.0	11.270	1009.500000	22.778000
27	15.306000	0.88	6.150000	170.0	9.596	1020.590027	15.306000
28	6.578000	0.93	6.150000	270.0	6.070	1019.619995	5.506000
29	7.594000	0.80	11.544000	155.0	7.406	1020.119995	5.489000
30	6.017000	0.66	23.281000	151.0	9.982	1009.900024	2.011000
31	4.050000	0.82	12.510000	161.0	8.050	1008.940002	1.028000
32	-1.206000	0.82	12.542000	150.0	9.805	1021.580017	-5.367000
33	-2.000000	0.80	0.805000	320.0	9.982	1024.400024	-2.000000
34	-10.000000	0.92	3.220000	20.0	0.161	1024.500000	-10.000000
35	23.889000	0.58	12.880000	150.0	9.982	1015.500000	23.889000
36	16.289000	0.94	5.909000	184.0	10.030	1005.210022	16.289000
37	8.983000	0.88	12.204000	1.0	8.130	1009.750000	7.061000
38	20.882999	0.49	3.735000	277.0	11.399	1012.020020	20.882999
39	20.233000	0.63	10.803000	30.0	16.100	1009.559998	20.233000
40	16.983000	0.64	11.930000	157.0	15.311	1012.760010	16.983000
41	-6.111000	0.74	14.490000	140.0	8.050	1017.299988	-11.811000
42	5.556000	0.70	20.930000	300.0	16.100	1011.200012	1.678000
43	21.021999	0.42	12.960000	152.0	9.982	1016.229980	21.021999
44	28.910999	0.40	9.580000	143.0	16.100	1016.859985	28.517000
45	12.156000	0.72	14.007000	309.0	9.982	1016.039978	12.156000
46	1.083000	0.92	11.077000	241.0	6.939	1010.780029	-2.261000
47	5.261000	0.74	24.343000	150.0	14.909	1009.830017	0.933000
48	2.433000	0.78	8.340000	74.0	8.130	1036.150024	0.039000
49	16.072001	0.59	12.526000	220.0	9.982	1011.640015	16.072001

Parte 2#

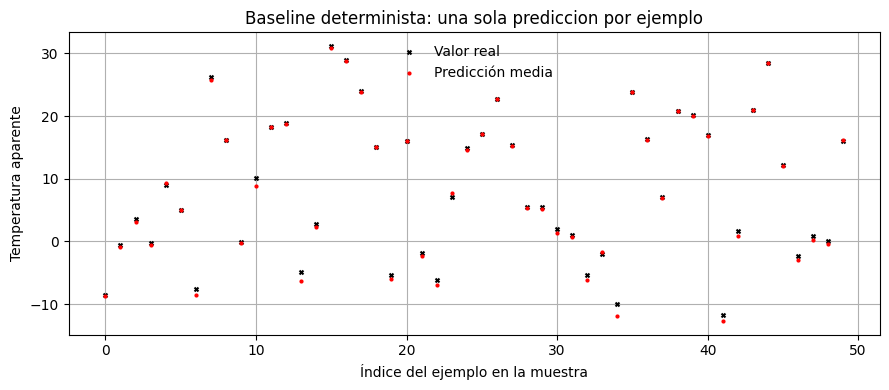

Baseline determinista#

Empezamos con una MLP comun. Esta red aprende una sola prediccion puntual para cada entrada.

Eso sirve como baseline, pero no alcanza para responder una pregunta importante: cuan confiado esta el modelo en cada prediccion?

hidden_units = [32, 32]


class MLP(nn.Module):
    def __init__(self, dropout_rate=0.0, hidden_units=(32, 32), activation="relu"):
        super().__init__()

        if activation == "relu":
            act = nn.ReLU
        elif activation == "sigmoid":
            act = nn.Sigmoid
        else:
            raise ValueError("activation must be 'relu' or 'sigmoid'.")

        layers = [nn.BatchNorm1d(NUM_FEATURES)]
        input_dim = NUM_FEATURES
        for units in hidden_units:
            layers.append(nn.Linear(input_dim, units))
            layers.append(act())
            if dropout_rate > 0:
                layers.append(nn.Dropout(dropout_rate))
            input_dim = units
        layers.append(nn.Linear(input_dim, 1))
        self.net = nn.Sequential(*layers)

    def forward(self, x):
        return self.net(x)


def rmse_in_original_units(pred_std, target_std):
    pred = inverse_transform_targets(pred_std, weather["y_mean"], weather["y_std"])
    target = inverse_transform_targets(target_std, weather["y_mean"], weather["y_std"])
    return float(np.sqrt(np.mean((pred - target) ** 2)))


def evaluate_point_model(model, dataloader, device=DEVICE):
    model.eval()
    preds = []
    targets = []
    with torch.no_grad():
        for X, y in dataloader:
            X = X.to(device)
            preds.append(model(X).squeeze(-1).cpu().numpy())
            targets.append(y.squeeze(-1).cpu().numpy())
    preds = np.concatenate(preds)
    targets = np.concatenate(targets)
    return rmse_in_original_units(preds, targets)


def train_point_model(
    model,
    train_dataloader,
    test_dataloader,
    num_epochs=40,
    learning_rate=2e-3,
    print_every=20,
):
    model = model.to(DEVICE)
    optimizer = Adam(model.parameters(), lr=learning_rate)
    loss_fn = nn.MSELoss()

    for epoch in range(1, num_epochs + 1):
        model.train()
        for X, y in train_dataloader:
            X = X.to(DEVICE)
            y = y.to(DEVICE)

            optimizer.zero_grad()
            preds = model(X).squeeze(-1)
            loss = loss_fn(preds, y.squeeze(-1))
            loss.backward()
            optimizer.step()

        if print_every is not None and ((epoch % print_every == 0) or (epoch == 1) or (epoch == num_epochs)):
            train_rmse = evaluate_point_model(model, train_dataloader)
            test_rmse = evaluate_point_model(model, test_dataloader)
            print(
                f"Epoch {epoch:3d}/{num_epochs} | "
                f"train_rmse={train_rmse:.3f} | test_rmse={test_rmse:.3f}"
            )

    return model


def point_predictions(model, X):
    model.eval()
    X = X.to(DEVICE)
    with torch.no_grad():
        preds = model(X).squeeze(-1).cpu().numpy()
    return preds


def summarize_samples(samples):
    samples = np.asarray(samples, dtype=np.float32)
    mean = samples.mean(axis=0)
    std = samples.std(axis=0)
    lower = mean - 1.96 * std
    upper = mean + 1.96 * std
    return mean, std, lower, upper


def make_summary_table(targets, mean, std=None, lower=None, upper=None):
    data = {
        "ejemplo": np.arange(len(targets)),
        "actual": np.asarray(targets),
        "pred_media": np.asarray(mean),
    }
    if std is not None:
        data["std"] = np.asarray(std)
    if lower is not None:
        data["lim_inf_95"] = np.asarray(lower)
    if upper is not None:
        data["lim_sup_95"] = np.asarray(upper)
    return pd.DataFrame(data).round(3)


def plot_prediction_summary(targets, mean, lower=None, upper=None, title=""):
    idx = np.arange(len(targets))
    fig, ax = plt.subplots(figsize=(9, 4))
    ax.scatter(idx, targets, marker='x', color="black", label="Valor real", zorder=3, s=8)
    ax.scatter(idx, mean, color="red", label="Predicción media", zorder=3, s=4)
    if lower is not None and upper is not None:
        yerr = np.abs(np.stack([mean - lower, upper - mean]))
        ax.errorbar(idx, mean, yerr=yerr, fmt='o', ms=3, color="red", alpha=0.5, capsize=3, label="Intervalo 95%", zorder=2)
    ax.set_xlabel("Índice del ejemplo en la muestra")
    ax.set_ylabel("Temperatura aparente")
    ax.set_title(title)
    ax.legend(frameon=False)
    plt.tight_layout()
    plt.show()

set_seed(SEED)
deterministic_model = MLP(dropout_rate=0.0, hidden_units=hidden_units, activation="relu")
deterministic_model = train_point_model(
    deterministic_model,
    train_dataloader,
    test_dataloader,
    num_epochs=40,
    learning_rate=2e-3,
    print_every=20,
)

Epoch   1/40 | train_rmse=0.991 | test_rmse=0.993
Epoch  20/40 | train_rmse=0.673 | test_rmse=0.675
Epoch  40/40 | train_rmse=0.485 | test_rmse=0.482

deterministic_rmse = evaluate_point_model(deterministic_model, test_dataloader)
deterministic_pred_std = point_predictions(deterministic_model, example_inputs)
deterministic_pred = inverse_transform_targets(
    deterministic_pred_std,
    weather["y_mean"],
    weather["y_std"],
)

print("Test RMSE en unidades originales:", round(deterministic_rmse, 3))
make_summary_table(example_targets, deterministic_pred)

Test RMSE en unidades originales: 0.482

	ejemplo	actual	pred_media
0	0	-8.522000	-8.717000
1	1	-0.500000	-0.948000
2	2	3.528000	3.104000
3	3	-0.206000	-0.624000
4	4	9.011000	9.381000
5	5	5.044000	5.020000
6	6	-7.633000	-8.501000
7	7	26.156000	25.802000
8	8	16.183001	16.179001
9	9	-0.050000	-0.325000
10	10	10.050000	8.804000
11	11	18.283001	18.174999
12	12	18.839001	18.801001
13	13	-4.867000	-6.303000
14	14	2.761000	2.248000
15	15	31.160999	30.834000
16	16	29.011000	28.802999
17	17	24.066999	23.907000
18	18	15.122000	15.012000
19	19	-5.322000	-5.946000
20	20	16.089001	15.997000
21	21	-1.861000	-2.300000
22	22	-6.111000	-6.981000
23	23	7.033000	7.787000
24	24	14.839000	14.652000
25	25	17.172001	17.087000
26	26	22.778000	22.646000
27	27	15.306000	15.256000
28	28	5.506000	5.331000
29	29	5.489000	5.155000
30	30	2.011000	1.399000
31	31	1.028000	0.681000
32	32	-5.367000	-6.099000
33	33	-2.000000	-1.646000
34	34	-10.000000	-11.917000
35	35	23.889000	23.790001
36	36	16.289000	16.253000
37	37	7.061000	6.893000
38	38	20.882999	20.790001
39	39	20.233000	20.052999
40	40	16.983000	16.896000
41	41	-11.811000	-12.685000
42	42	1.678000	0.935000
43	43	21.021999	20.899000
44	44	28.517000	28.384001
45	45	12.156000	12.055000
46	46	-2.261000	-2.937000
47	47	0.933000	0.158000
48	48	0.039000	-0.449000
49	49	16.072001	16.115000

plot_prediction_summary(
    example_targets,
    deterministic_pred,
    title="Baseline determinista: una sola prediccion por ejemplo",
)

../_images/fe9c13eb43a48876f57f5a4265e5a1af6cef88112b974061262e7392394698f7.png

El baseline ya captura la relacion principal entre variables meteorologicas y temperatura aparente. Pero sigue faltando una estimacion de confianza. A partir de aca, todos los enfoques intentaran generar una familia de predicciones y no solo una.

Parte 3#

Deep ensembles#

En un deep ensemble entrenamos varias redes independientes y usamos la dispersion entre sus salidas como proxy de incerteza epistemica.

La intuicion es:

distintas inicializaciones llevan a soluciones distintas;
si usamos bootstrap, cada red ve una version algo distinta del dataset;
la variabilidad entre miembros se interpreta como incertidumbre del modelo.

def build_bootstrap_dataloader(train_dataloader, seed):
    X_train = train_dataloader.dataset.tensors[0].cpu().numpy()
    y_train = train_dataloader.dataset.tensors[1].cpu().numpy()
    rng = np.random.default_rng(seed)
    bootstrap_idx = rng.choice(len(X_train), size=len(X_train), replace=True)
    ds = TensorDataset(
        torch.from_numpy(X_train[bootstrap_idx]),
        torch.from_numpy(y_train[bootstrap_idx]),
    )
    return DataLoader(ds, batch_size=train_dataloader.batch_size, shuffle=True)


def ensemble_predictions(models, X):
    preds = []
    for model in models:
        preds.append(point_predictions(model, X))
    return np.stack(preds, axis=0)


ensemble_models = []
ensemble_size = 4

for member_idx in range(ensemble_size):
    set_seed(SEED + 100 + member_idx)
    member_loader = build_bootstrap_dataloader(train_dataloader, seed=SEED + 100 + member_idx)
    member = MLP(dropout_rate=0.0, hidden_units=hidden_units, activation="relu") # instancio nueva red para cada miembro del ensemble
    member = train_point_model(
        member,
        member_loader,
        test_dataloader,
        num_epochs=30,
        learning_rate=2e-3,
        print_every=None,
    )
    ensemble_models.append(member)

ensemble_test_predictions_std = ensemble_predictions(
    ensemble_models,
    test_dataloader.dataset.tensors[0],
)
ensemble_mean_test_std = ensemble_test_predictions_std.mean(axis=0)
ensemble_rmse = rmse_in_original_units(
    ensemble_mean_test_std,
    test_dataloader.dataset.tensors[1].squeeze(-1).cpu().numpy(),
)

ensemble_sample_predictions_std = ensemble_predictions(ensemble_models, example_inputs)
ensemble_sample_predictions = inverse_transform_targets(
    ensemble_sample_predictions_std.reshape(-1),
    weather["y_mean"],
    weather["y_std"],
).reshape(ensemble_sample_predictions_std.shape)

ensemble_mean, ensemble_std, ensemble_lower, ensemble_upper = summarize_samples(ensemble_sample_predictions)

print("Test RMSE en unidades originales:", round(float(ensemble_rmse), 3))
make_summary_table(
    example_targets,
    ensemble_mean,
    ensemble_std,
    ensemble_lower,
    ensemble_upper,
)

plot_prediction_summary(
    example_targets,
    ensemble_mean,
    ensemble_lower,
    ensemble_upper,
    title="Deep ensemble: dispersion entre miembros del ensemble",
)

Test RMSE en unidades originales: 0.287

../_images/94aa19e8da401883158269bb3315f4e1ddb61b425602d138351e2229ab66d913.png

Deep ensembles suelen ser un baseline muy fuerte en practica. Su principal costo es computacional: entrenamos varias redes completas.

Parte 4#

Monte Carlo dropout#

Ahora agregamos dropout a la red y lo dejamos activo tambien en inferencia. Repetir varias pasadas sobre la misma entrada produce distintas salidas, porque cada mascara de dropout induce una subred distinta.

def enable_dropout_only(model):
    model.eval()
    for module in model.modules():
        if isinstance(module, nn.Dropout):
            module.train()


def mc_dropout_predictions(model, X, mc_samples=100):
    X = X.to(DEVICE)
    preds = []
    enable_dropout_only(model)
    with torch.no_grad():
        for _ in range(mc_samples):
            preds.append(model(X).squeeze(-1).cpu().numpy())
    return np.stack(preds, axis=0)


set_seed(SEED + 1)
dropout_model = MLP(dropout_rate=0.05, hidden_units=hidden_units, activation="relu")
dropout_model = train_point_model(
    dropout_model,
    train_dataloader,
    test_dataloader,
    num_epochs=40,
    learning_rate=2e-3,
    print_every=20,
)

Epoch   1/40 | train_rmse=0.984 | test_rmse=0.996
Epoch  20/40 | train_rmse=0.531 | test_rmse=0.526
Epoch  40/40 | train_rmse=0.674 | test_rmse=0.673

mc_test_predictions_std = mc_dropout_predictions(
    dropout_model,
    test_dataloader.dataset.tensors[0],
    mc_samples=50,
)
mc_mean_test_std = mc_test_predictions_std.mean(axis=0)
mc_rmse = rmse_in_original_units(
    mc_mean_test_std,
    test_dataloader.dataset.tensors[1].squeeze(-1).cpu().numpy(),
)

mc_sample_predictions_std = mc_dropout_predictions(dropout_model, example_inputs, mc_samples=100)
mc_sample_predictions = inverse_transform_targets(
    mc_sample_predictions_std.reshape(-1),
    weather["y_mean"],
    weather["y_std"],
).reshape(mc_sample_predictions_std.shape)

mc_mean, mc_std, mc_lower, mc_upper = summarize_samples(mc_sample_predictions)

print("Test RMSE usando la media MC:", round(float(mc_rmse), 3))
make_summary_table(
    example_targets,
    mc_mean,
    mc_std,
    mc_lower,
    mc_upper,
)

plot_prediction_summary(
    example_targets,
    mc_mean,
    mc_lower,
    mc_upper,
    title="Monte Carlo dropout: varias mascaras, varias predicciones",
)

Test RMSE usando la media MC: 0.689

../_images/0a28124889dcaa210c66f892fc4b8dcccafde52c2f76c4c80681ccbd38bcce8a.png

MC dropout es mas barato que un ensemble completo y muchas veces ofrece una aproximacion razonable a la incerteza epistemica. Conceptualmente, sigue siendo una aproximacion indirecta.

Parte 5#

Bayesian Neural Network con `bayesian-torch`#

En una BNN ya no tratamos los pesos como valores fijos, sino como variables aleatorias. bayesian-torch implementa capas bayesianas reparameterized, y el entrenamiento combina:

un termino de ajuste a datos;
un termino KL que regulariza la posterior aproximada respecto de una prior.

Vamos a comparar una BNN entrenada con menos datos contra otra entrenada con todo el conjunto de entrenamiento.

class BayesianWeatherMLP(nn.Module):
    def __init__(
        self,
        prior_mean=0.0,
        prior_variance=1.0,
        posterior_mu_init=0.0,
        posterior_rho_init=-2.5,
    ):
        super().__init__()

        self.bn = nn.BatchNorm1d(NUM_FEATURES, eps=1e-3, momentum=0.99)
        self.fc1 = LinearReparameterization(
            in_features=NUM_FEATURES,
            out_features=hidden_units[0],
            prior_mean=prior_mean,
            prior_variance=prior_variance,
            posterior_mu_init=posterior_mu_init,
            posterior_rho_init=posterior_rho_init,
        )
        self.fc2 = LinearReparameterization(
            in_features=hidden_units[0],
            out_features=hidden_units[1],
            prior_mean=prior_mean,
            prior_variance=prior_variance,
            posterior_mu_init=posterior_mu_init,
            posterior_rho_init=posterior_rho_init,
        )
        self.out = nn.Linear(hidden_units[1], 1)

    def forward(self, x):
        kl_sum = 0.0
        x = self.bn(x)
        x, kl = self.fc1(x)
        kl_sum = kl_sum + kl
        x = F.relu(x)
        x, kl = self.fc2(x)
        kl_sum = kl_sum + kl
        x = F.relu(x)
        x = self.out(x)
        return x, kl_sum


def evaluate_bnn_rmse(model, dataloader, device=DEVICE, mc_samples=30):
    model.eval()
    preds = []
    targets = []
    with torch.no_grad():
        for X, y in dataloader:
            X = X.to(device)
            batch_preds = []
            for _ in range(mc_samples):
                pred, _ = model(X)
                batch_preds.append(pred.squeeze(-1).cpu().numpy())
            preds.append(np.mean(batch_preds, axis=0))
            targets.append(y.squeeze(-1).cpu().numpy())
    preds = np.concatenate(preds)
    targets = np.concatenate(targets)
    return rmse_in_original_units(preds, targets)


def train_bnn(
    model,
    train_dataloader,
    test_dataloader,
    num_epochs=60,
    learning_rate=1e-3,
    kl_weight=0.02,
    print_every=20,
):
    model = model.to(DEVICE)
    optimizer = Adam(model.parameters(), lr=learning_rate)
    mse_loss = nn.MSELoss()
    beta = kl_weight / len(train_dataloader.dataset)

    for epoch in range(1, num_epochs + 1):
        model.train()
        for X, y in train_dataloader:
            X = X.to(DEVICE)
            y = y.to(DEVICE)

            optimizer.zero_grad()
            preds, kl = model(X)
            preds = preds.squeeze(-1)
            data_loss = mse_loss(preds, y.squeeze(-1))
            loss = data_loss + beta * kl
            loss.backward()
            optimizer.step()

        if print_every is not None and ((epoch % print_every == 0) or (epoch == 1) or (epoch == num_epochs)):
            train_rmse = evaluate_bnn_rmse(model, train_dataloader)
            test_rmse = evaluate_bnn_rmse(model, test_dataloader)
            print(
                f"Epoch {epoch:3d}/{num_epochs} | "
                f"train_rmse={train_rmse:.3f} | test_rmse={test_rmse:.3f}"
            )

    return model


def bnn_predictions(model, X, mc_samples=100):
    model.eval()
    X = X.to(DEVICE)
    preds = []
    with torch.no_grad():
        for _ in range(mc_samples):
            yhat, _ = model(X)
            preds.append(yhat.squeeze(-1).cpu().numpy())
    return np.stack(preds, axis=0)

weather_small = get_weather_dataloaders(
    train_size=TRAIN_SIZE,
    batch_size=BATCH_SIZE,
    seed=SEED,
    dataset_size=0.40,
)

set_seed(SEED + 2)
bnn_small = BayesianWeatherMLP(posterior_rho_init=-2.0)
bnn_small = train_bnn(
    bnn_small,
    weather_small["train_loader"],
    weather_small["test_loader"],
    num_epochs=60,
    learning_rate=1e-3,
    kl_weight=0.02,
    print_every=20,
)

set_seed(SEED + 3)
bnn_full = BayesianWeatherMLP(posterior_rho_init=-2.5)
bnn_full = train_bnn(
    bnn_full,
    train_dataloader,
    test_dataloader,
    num_epochs=60,
    learning_rate=1e-3,
    kl_weight=0.02,
    print_every=20,
)

Epoch   1/60 | train_rmse=8.518 | test_rmse=8.570
Epoch  20/60 | train_rmse=0.893 | test_rmse=0.901
Epoch  40/60 | train_rmse=0.968 | test_rmse=0.992
Epoch  60/60 | train_rmse=1.007 | test_rmse=1.018
Epoch   1/60 | train_rmse=2.440 | test_rmse=2.442
Epoch  20/60 | train_rmse=1.226 | test_rmse=1.222
Epoch  40/60 | train_rmse=0.852 | test_rmse=0.837
Epoch  60/60 | train_rmse=0.595 | test_rmse=0.580

bnn_small_sample_predictions_std = bnn_predictions(bnn_small, example_inputs, mc_samples=100)
bnn_full_sample_predictions_std = bnn_predictions(bnn_full, example_inputs, mc_samples=100)

bnn_small_sample_predictions = inverse_transform_targets(
    bnn_small_sample_predictions_std.reshape(-1),
    weather_small["y_mean"],
    weather_small["y_std"],
).reshape(bnn_small_sample_predictions_std.shape)

bnn_full_sample_predictions = inverse_transform_targets(
    bnn_full_sample_predictions_std.reshape(-1),
    weather["y_mean"],
    weather["y_std"],
).reshape(bnn_full_sample_predictions_std.shape)

bnn_small_mean, bnn_small_std, _, _ = summarize_samples(bnn_small_sample_predictions)
bnn_full_mean, bnn_full_std, bnn_full_lower, bnn_full_upper = summarize_samples(bnn_full_sample_predictions)

bnn_comparison = pd.DataFrame(
    {
        "modelo": ["BNN con subset 40%", "BNN con train completo"],
        "rmse_test": [
            evaluate_bnn_rmse(bnn_small, weather_small["test_loader"]),
            evaluate_bnn_rmse(bnn_full, test_dataloader),
        ],
        "std_promedio_en_muestra": [
            bnn_small_std.mean(),
            bnn_full_std.mean(),
        ],
    }
).round(3)

bnn_comparison

	modelo	rmse_test	std_promedio_en_muestra
0	BNN con subset 40%	1.011	1.137
1	BNN con train completo	0.585	0.498

plot_prediction_summary(
    example_targets,
    bnn_full_mean,
    bnn_full_lower,
    bnn_full_upper,
    title="BNN con bayesian-torch: incertidumbre epistemica via pesos aleatorios",
)

../_images/d871a65c96611f275f0878619c72837ab6d689026255f0872b251ecf4b7bcbd7.png

La logica sigue siendo la misma: con menos datos, la posterior sobre pesos suele quedar menos concentrada y la variabilidad predictiva tiende a crecer.

Parte 6#

BNN probabilistica#

Hasta ahora la dispersion surgia solo de repetir pasadas con distintos pesos o distintas mascaras. En una BNN probabilistica, la red devuelve directamente una distribucion:

\[ y \mid x \sim \mathcal{N}(\mu(x), \sigma(x)). \]

Aca la variacion entre distintas muestras de pesos aporta una componente epistemica, mientras que sigma(x) modela una componente aleatorica de la salida.

class ProbabilisticBayesianWeatherMLP(nn.Module):
    def __init__(
        self,
        prior_mean=0.0,
        prior_variance=1.0,
        posterior_mu_init=0.0,
        posterior_rho_init=-3.0,
        min_sigma=1e-3,
    ):
        super().__init__()
        self.min_sigma = min_sigma

        self.bn = nn.BatchNorm1d(NUM_FEATURES, eps=1e-3, momentum=0.99)
        self.fc1 = LinearReparameterization(
            in_features=NUM_FEATURES,
            out_features=hidden_units[0],
            prior_mean=prior_mean,
            prior_variance=prior_variance,
            posterior_mu_init=posterior_mu_init,
            posterior_rho_init=posterior_rho_init,
        )
        self.fc2 = LinearReparameterization(
            in_features=hidden_units[0],
            out_features=hidden_units[1],
            prior_mean=prior_mean,
            prior_variance=prior_variance,
            posterior_mu_init=posterior_mu_init,
            posterior_rho_init=posterior_rho_init,
        )
        self.param_head = nn.Linear(hidden_units[1], 2)

    def forward(self, x):
        kl_sum = 0.0
        x = self.bn(x)
        x, kl = self.fc1(x)
        kl_sum = kl_sum + kl
        x = F.relu(x)
        x, kl = self.fc2(x)
        kl_sum = kl_sum + kl
        x = F.relu(x)

        params = self.param_head(x)
        mu = params[:, 0]
        sigma = F.softplus(params[:, 1]) + self.min_sigma
        dist = Normal(loc=mu, scale=sigma)
        return dist, kl_sum


def evaluate_probabilistic_bnn_rmse(model, dataloader, device=DEVICE, mc_samples=30):
    model.eval()
    preds = []
    targets = []
    with torch.no_grad():
        for X, y in dataloader:
            X = X.to(device)
            batch_mu = []
            for _ in range(mc_samples):
                dist, _ = model(X)
                batch_mu.append(dist.loc.cpu().numpy())
            preds.append(np.mean(batch_mu, axis=0))
            targets.append(y.squeeze(-1).cpu().numpy())
    preds = np.concatenate(preds)
    targets = np.concatenate(targets)
    return rmse_in_original_units(preds, targets)


def train_probabilistic_bnn(
    model,
    train_dataloader,
    test_dataloader,
    num_epochs=80,
    learning_rate=7e-4,
    kl_weight=0.005,
    print_every=20,
):
    model = model.to(DEVICE)
    optimizer = Adam(model.parameters(), lr=learning_rate)
    beta = kl_weight / len(train_dataloader.dataset)

    for epoch in range(1, num_epochs + 1):
        model.train()
        for X, y in train_dataloader:
            X = X.to(DEVICE)
            y = y.to(DEVICE)

            optimizer.zero_grad()
            dist, kl = model(X)
            nll = -dist.log_prob(y.squeeze(-1)).mean()
            loss = nll + beta * kl
            loss.backward()
            optimizer.step()

        if print_every is not None and ((epoch % print_every == 0) or (epoch == 1) or (epoch == num_epochs)):
            train_rmse = evaluate_probabilistic_bnn_rmse(model, train_dataloader)
            test_rmse = evaluate_probabilistic_bnn_rmse(model, test_dataloader)
            print(
                f"Epoch {epoch:3d}/{num_epochs} | "
                f"train_rmse={train_rmse:.3f} | test_rmse={test_rmse:.3f}"
            )

    return model


def probabilistic_bnn_predictions(model, X, mc_samples=100):
    model.eval()
    X = X.to(DEVICE)

    mu_samples = []
    sigma_samples = []
    with torch.no_grad():
        for _ in range(mc_samples):
            dist, _ = model(X)
            mu_samples.append(dist.loc.cpu().numpy())
            sigma_samples.append(dist.scale.cpu().numpy())

    mu_samples = np.stack(mu_samples, axis=0)
    sigma_samples = np.stack(sigma_samples, axis=0)

    mu_samples_raw = inverse_transform_targets(
        mu_samples.reshape(-1),
        weather["y_mean"],
        weather["y_std"],
    ).reshape(mu_samples.shape)

    sigma_scale = weather["y_std"].cpu().numpy().reshape(-1)[0]
    sigma_samples_raw = sigma_samples * sigma_scale

    pred_mean = mu_samples_raw.mean(axis=0)
    epistemic_std = mu_samples_raw.std(axis=0)
    aleatoric_std = np.sqrt((sigma_samples_raw ** 2).mean(axis=0))
    total_std = np.sqrt(epistemic_std ** 2 + aleatoric_std ** 2)

    y_samples = mu_samples_raw + sigma_samples_raw * np.random.randn(*mu_samples_raw.shape)
    lower = np.quantile(y_samples, 0.025, axis=0)
    upper = np.quantile(y_samples, 0.975, axis=0)

    return {
        "pred_mean": pred_mean,
        "epistemic_std": epistemic_std,
        "aleatoric_std": aleatoric_std,
        "total_std": total_std,
        "lower": lower,
        "upper": upper,
    }

set_seed(SEED + 4)
probabilistic_bnn = ProbabilisticBayesianWeatherMLP(posterior_rho_init=-3.0)
probabilistic_bnn = train_probabilistic_bnn(
    probabilistic_bnn,
    train_dataloader,
    test_dataloader,
    num_epochs=80,
    learning_rate=7e-4,
    kl_weight=0.005,
    print_every=20,
)

Epoch   1/80 | train_rmse=2.669 | test_rmse=2.676
Epoch  20/80 | train_rmse=0.679 | test_rmse=0.673
Epoch  40/80 | train_rmse=0.467 | test_rmse=0.468
Epoch  60/80 | train_rmse=0.617 | test_rmse=0.618
Epoch  80/80 | train_rmse=0.569 | test_rmse=0.564

probabilistic_rmse = evaluate_probabilistic_bnn_rmse(probabilistic_bnn, test_dataloader)
probabilistic_summary = probabilistic_bnn_predictions(
    probabilistic_bnn,
    example_inputs,
    mc_samples=100,
)

probabilistic_table = make_summary_table(
    example_targets,
    probabilistic_summary["pred_mean"],
    probabilistic_summary["total_std"],
    probabilistic_summary["lower"],
    probabilistic_summary["upper"],
)
probabilistic_table["std_epistemica"] = probabilistic_summary["epistemic_std"]
probabilistic_table["std_aleatorica"] = probabilistic_summary["aleatoric_std"]
probabilistic_table = probabilistic_table.round(3)

print("Test RMSE usando la media predictiva:", round(float(probabilistic_rmse), 3))
probabilistic_table

Test RMSE usando la media predictiva: 0.569

	ejemplo	actual	pred_media	std	lim_inf_95	lim_sup_95	std_epistemica	std_aleatorica
0	0	-8.522000	-8.214000	1.557	-11.013	-4.654	0.566	1.450
1	1	-0.500000	-1.077000	0.962	-3.251	0.781	0.395	0.877
2	2	3.528000	3.054000	0.843	1.750	4.757	0.309	0.784
3	3	-0.206000	-0.715000	0.952	-2.661	1.138	0.406	0.861
4	4	9.011000	8.994000	0.735	7.103	10.179	0.258	0.688
5	5	5.044000	4.850000	0.768	3.438	6.104	0.263	0.721
6	6	-7.633000	-7.919000	1.375	-10.259	-5.140	0.531	1.269
7	7	26.156000	25.708000	1.431	22.410	28.343	0.465	1.353
8	8	16.183001	15.855000	0.641	14.643	17.098	0.233	0.597
9	9	-0.050000	-0.340000	1.084	-2.765	1.024	0.405	1.006
10	10	10.050000	8.159000	0.896	6.186	9.566	0.303	0.843
11	11	18.283001	17.924000	0.739	16.793	19.266	0.273	0.687
12	12	18.839001	18.540001	0.770	16.937	20.157	0.313	0.704
13	13	-4.867000	-5.605000	1.571	-7.617	-2.718	0.800	1.352
14	14	2.761000	2.227000	1.110	0.063	4.170	0.422	1.026
15	15	31.160999	29.951000	2.037	26.408	33.641	0.564	1.957
16	16	29.011000	27.639000	1.748	24.953	30.645	0.489	1.679
17	17	24.066999	23.716999	1.238	21.514	25.707	0.407	1.169
18	18	15.122000	14.874000	0.643	13.376	16.036	0.222	0.604
19	19	-5.322000	-5.751000	1.213	-8.108	-3.577	0.558	1.076
20	20	16.089001	15.829000	0.647	14.741	16.915	0.231	0.604
21	21	-1.861000	-2.426000	1.034	-4.718	-0.003	0.447	0.932
22	22	-6.111000	-6.157000	1.339	-8.940	-3.769	0.491	1.246
23	23	7.033000	7.371000	1.212	5.365	9.760	0.425	1.135
24	24	14.839000	14.514000	0.714	13.407	15.505	0.262	0.665
25	25	17.172001	16.834999	0.680	15.562	18.267	0.243	0.635
26	26	22.778000	22.468000	1.112	20.479	24.486	0.371	1.048
27	27	15.306000	14.954000	0.623	13.959	16.037	0.226	0.580
28	28	5.506000	5.321000	0.780	3.879	6.875	0.247	0.739
29	29	5.489000	5.029000	0.831	3.443	6.528	0.256	0.790
30	30	2.011000	1.533000	1.061	-0.268	3.648	0.418	0.975
31	31	1.028000	0.478000	0.901	-1.164	2.173	0.368	0.822
32	32	-5.367000	-5.752000	1.259	-8.767	-3.286	0.478	1.164
33	33	-2.000000	-2.264000	1.230	-4.403	-0.107	0.464	1.139
34	34	-10.000000	-11.795000	1.847	-15.642	-7.858	0.692	1.712
35	35	23.889000	23.545000	1.212	21.534	25.517	0.408	1.141
36	36	16.289000	15.952000	0.646	14.811	17.071	0.228	0.604
37	37	7.061000	6.627000	0.851	4.979	8.465	0.250	0.813
38	38	20.882999	20.513000	0.934	18.904	22.452	0.326	0.876
39	39	20.233000	19.924999	0.880	18.094	21.769	0.321	0.820
40	40	16.983000	16.680000	0.670	15.153	18.017	0.246	0.623
41	41	-11.811000	-11.731000	1.560	-15.108	-7.748	0.619	1.432
42	42	1.678000	1.288000	1.003	-0.384	3.045	0.405	0.917
43	43	21.021999	20.729000	0.950	18.727	22.519	0.342	0.886
44	44	28.517000	28.292999	1.792	24.349	32.047	0.518	1.716
45	45	12.156000	11.869000	0.746	10.683	13.549	0.220	0.713
46	46	-2.261000	-2.720000	1.082	-4.587	-0.706	0.410	1.001
47	47	0.933000	0.477000	1.087	-1.422	2.931	0.454	0.988
48	48	0.039000	-0.255000	0.957	-2.011	1.196	0.362	0.886
49	49	16.072001	15.803000	0.647	14.564	16.753	0.234	0.603

plot_prediction_summary(
    example_targets,
    probabilistic_summary["pred_mean"],
    probabilistic_summary["lower"],
    probabilistic_summary["upper"],
    title="BNN probabilistica: componente epistemica y aleatorica",
)

../_images/e49bff7f704b39151699e98c854642fa22aa0dadd86401bb66d52f309a840473.png

Parte 7#

Comparacion global#

Ahora resumimos todos los enfoques en una sola tabla. Como estamos trabajando en temperatura aparente, todas las metricas se reportan de nuevo en unidades originales y no en la escala estandarizada.

comparison_rows = [
    {
        "metodo": "Deterministica",
        "rmse_test": deterministic_rmse,
        "std_media_muestra": 0.0,
        "std_epistemica": 0.0,
        "std_aleatorica": 0.0,
    },
    {
        "metodo": "Deep ensemble",
        "rmse_test": ensemble_rmse,
        "std_media_muestra": ensemble_std.mean(),
        "std_epistemica": ensemble_std.mean(),
        "std_aleatorica": 0.0,
    },
    {
        "metodo": "MC dropout",
        "rmse_test": mc_rmse,
        "std_media_muestra": mc_std.mean(),
        "std_epistemica": mc_std.mean(),
        "std_aleatorica": 0.0,
    },
    {
        "metodo": "BNN",
        "rmse_test": evaluate_bnn_rmse(bnn_full, test_dataloader),
        "std_media_muestra": bnn_full_std.mean(),
        "std_epistemica": bnn_full_std.mean(),
        "std_aleatorica": 0.0,
    },
    {
        "metodo": "BNN probabilistica",
        "rmse_test": probabilistic_rmse,
        "std_media_muestra": probabilistic_summary["total_std"].mean(),
        "std_epistemica": probabilistic_summary["epistemic_std"].mean(),
        "std_aleatorica": probabilistic_summary["aleatoric_std"].mean(),
    },
]

comparison_df = pd.DataFrame(comparison_rows).round(3)
comparison_df

	metodo	rmse_test	std_media_muestra	std_epistemica	std_aleatorica
0	Deterministica	0.482	0.000	0.000	0.000
1	Deep ensemble	0.287	0.396	0.396	0.000
2	MC dropout	0.689	0.726	0.726	0.000
3	BNN	0.598	0.498	0.498	0.000
4	BNN probabilistica	0.569	1.052	0.383	0.978
